Gateway Overview and Architecture

How ArraySubs connects to payment gateways for automatic recurring billing — the two billing models, supported gateways, capability matrix, and payment method lifecycle.

Availability: Pro

Page Navigation

• Current guide: Gateway Overview and Architecture
• Where to open it: Storefront checkout, WordPress Admin -> ArraySubs -> Audits [beta] -> Gateway Logs, and ArraySubs -> Subscriptions -> subscription detail
• Section overview: Open overview
• Previous guide: paypal
• Next guide: stripe
• Troubleshooting: Audits, Logs, and Troubleshooting

Overview

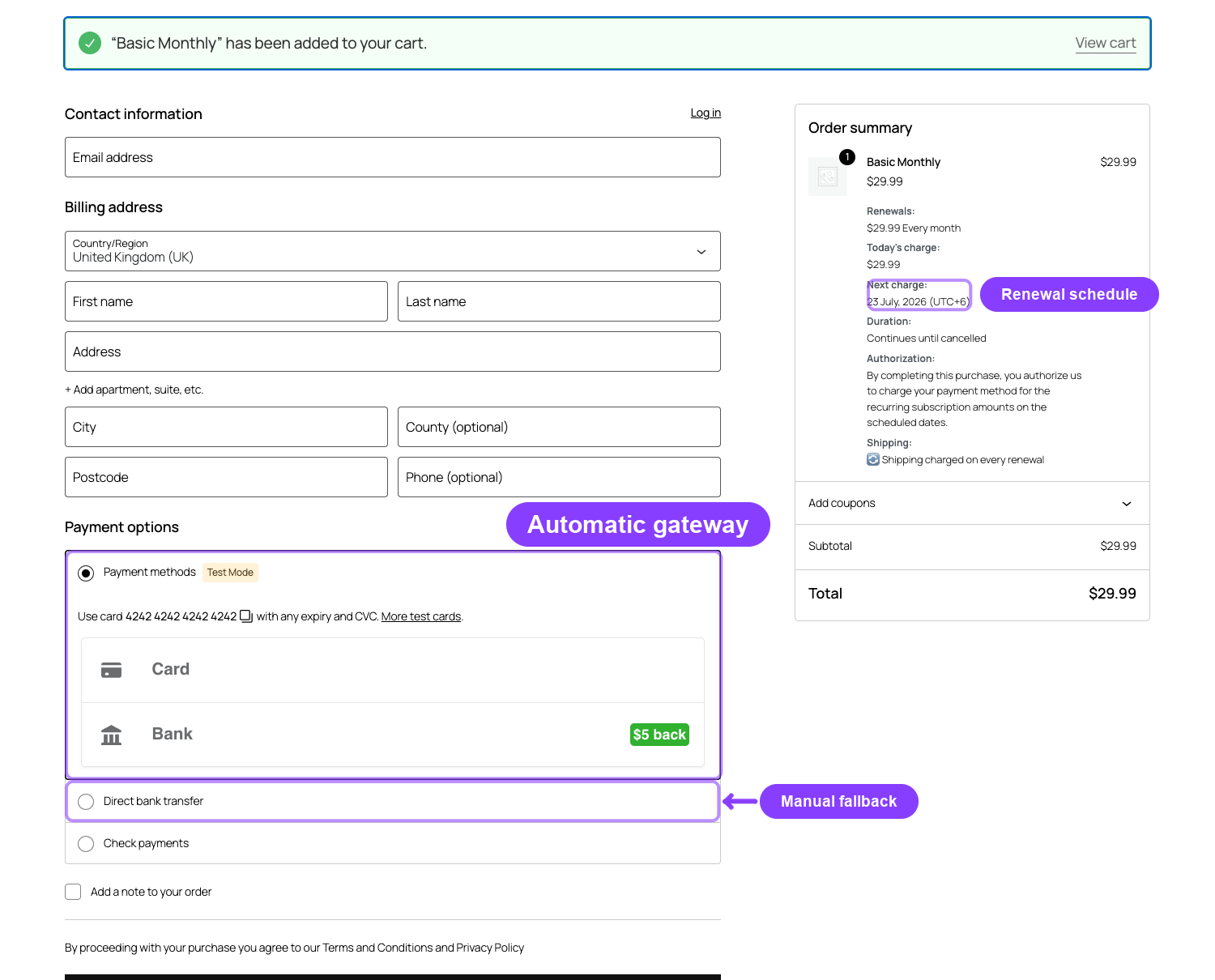

ArraySubs Pro integrates with three payment gateways — Stripe, PayPal, and Paddle — to process subscription payments automatically. Each gateway handles initial checkout payments, stores customer payment methods, and charges renewal invoices without merchant or customer intervention.

The architecture supports two fundamentally different billing models, and understanding which model your gateway uses is essential for configuring your store correctly.

Two Billing Models

ArraySubs-Managed Billing

ArraySubs controls the entire billing schedule. It decides when to charge, generates the renewal invoice, and sends a charge request to the gateway.

How it works:

1. ArraySubs calculates the next payment date based on the subscription's billing cycle
2. When the date arrives, the renewal engine creates an invoice and tells the gateway to charge the stored payment method
3. The gateway processes the charge off-session (no customer action needed)
4. The result (success or failure) comes back to ArraySubs via webhook

Used by: Stripe

Advantages: Full control over billing timing, grace periods, retry logic, and renewal dates. The billing schedule in ArraySubs is always the single source of truth.

Gateway-Managed Billing

The payment gateway controls its own billing cycle. ArraySubs creates the initial subscription agreement, and the gateway handles all future charges on its own schedule.

How it works:

1. During checkout, ArraySubs creates a billing agreement or subscription on the gateway's platform
2. The gateway charges the customer according to its own schedule
3. When a charge occurs, the gateway sends a webhook to ArraySubs
4. ArraySubs creates the corresponding renewal order and updates the subscription

Used by: PayPal, Paddle

Advantages: Simpler integration, the gateway handles PCI compliance and SCA challenges internally, and features like Paddle's automatic tax/VAT are handled natively.

---

Gateway Capability Matrix

Not all gateways support the same features. Use this matrix to choose the right gateway for your store's needs.

---

Payment Method Lifecycle

Every subscription that uses a gateway stores payment method details as metadata on the subscription record.

Stored Data

Gateway Status Values

Detaching a Gateway

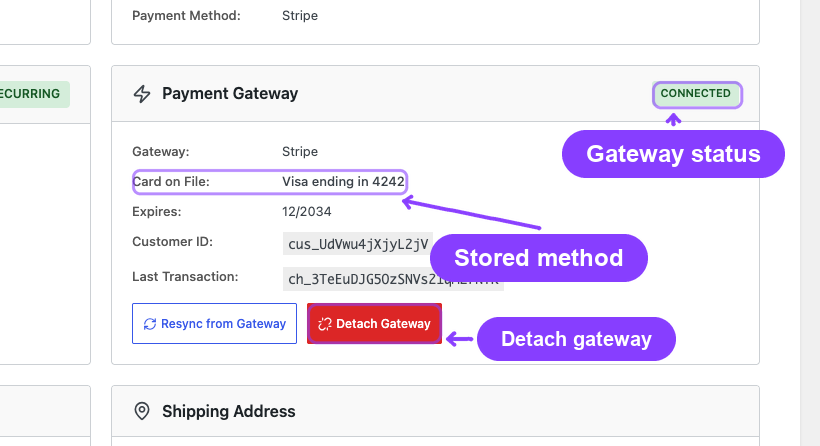

Administrators can detach a gateway from a subscription through the admin subscription detail page. Detaching:

• Clears all payment method metadata (brand, last4, expiry, session, transaction IDs)
• Sets _gateway_status to detached
• Converts the subscription to manual payment mode — future renewals generate invoices that the customer must pay manually

This is useful when migrating a subscription from one gateway to another or when a customer's payment method is permanently invalid.

---

Webhook Architecture

All three gateways communicate with ArraySubs through webhooks — HTTP POST requests sent when events occur on the gateway side.

Webhook URL

Each gateway has a dedicated webhook endpoint:

https://yoursite.com/wp-json/arraysubs/v1/webhooks/{gateway_slug}

For example:

• Stripe: official WooCommerce Stripe Gateway webhook URL for core payment events, plus an ArraySubs secondary endpoint https://yoursite.com/wp-json/arraysubs/v1/webhooks/arraysubs_stripe for ArraySubs-specific payment-method, card, and reconciliation events. ArraySubsPro creates or repairs this secondary endpoint automatically through the active WooCommerce Stripe API connection.
• PayPal: https://yoursite.com/wp-json/arraysubs/v1/webhooks/arraysubs_paypal
• Paddle: https://yoursite.com/wp-json/arraysubs/v1/webhooks/arraysubs_paddle

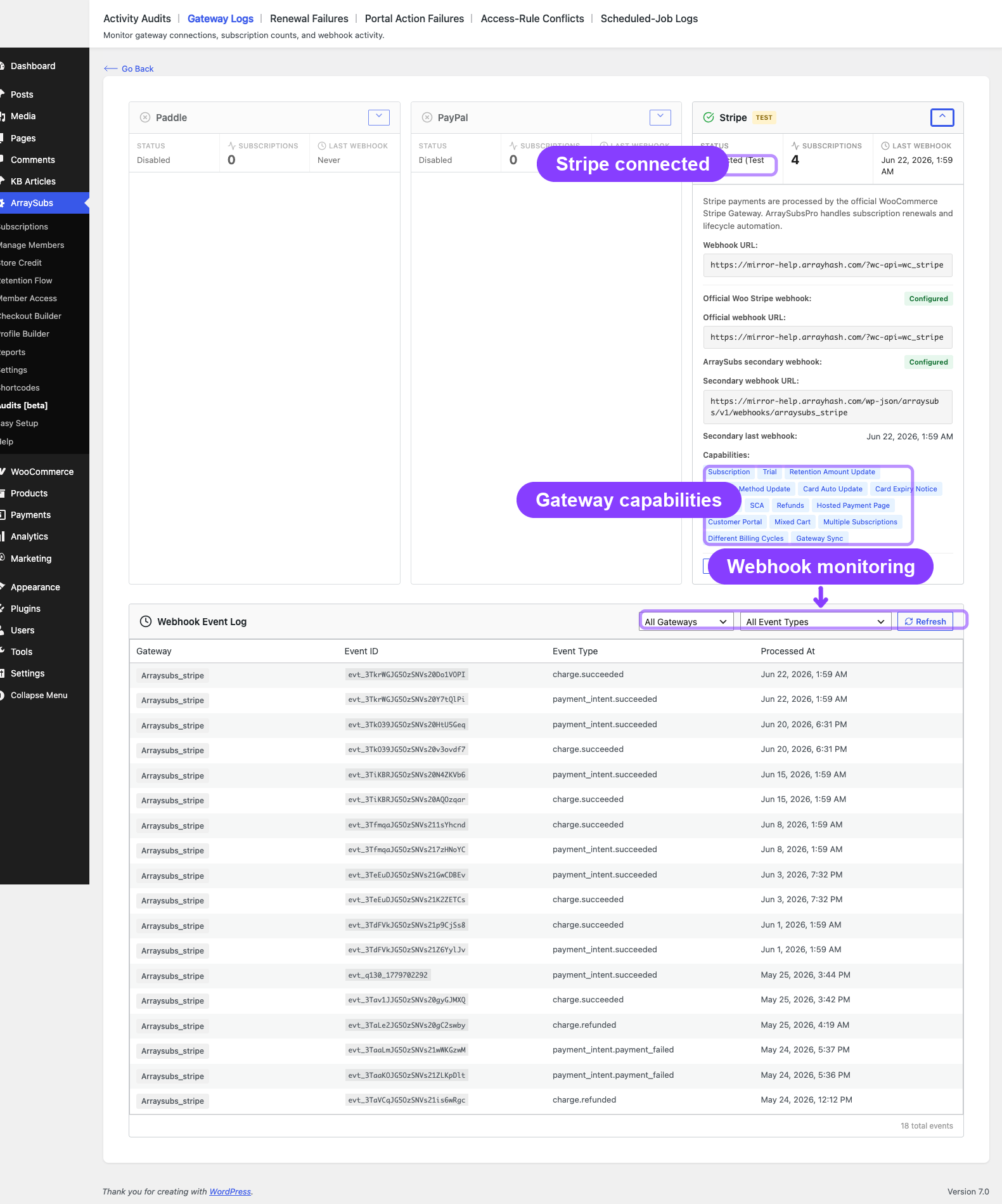

You can find the exact URL for each gateway on the Gateway Health Dashboard.

Processing Pipeline

Every incoming webhook goes through a standardized pipeline:

1. Signature verification — cryptographic check using the gateway's webhook secret (HMAC-SHA256 for Stripe/Paddle, API verification for PayPal)
2. Payload parsing — gateway-specific parsing into a normalized event structure
3. Idempotency check — duplicate detection using the event ID (stored in wp_arraysubs_webhook_events table)
4. Entity resolution — maps the webhook data to the correct subscription, order, and customer
5. Event dispatch — routes to the appropriate handler based on the normalized event type
6. Logging — records the event in the webhook events table

Normalized Event Types

Regardless of which gateway sends the webhook, events are mapped to these standardized types:

---

Real-Life Use Cases

SaaS with Global Customers (Stripe)

A software company serving customers worldwide chooses Stripe for full SCA/3D Secure support, card auto-update (so expired cards are replaced automatically), and ArraySubs-managed billing for precise control over grace periods and retry timing.

Marketplace with PayPal Buyers (PayPal)

An online marketplace where many customers prefer PayPal uses PayPal's Billing Agreements. Customers approve the agreement once during checkout, and PayPal handles all future charges on its own schedule. The marketplace doesn't store any card data.

Digital Products with Tax Compliance (Paddle)

A digital course seller uses Paddle as Merchant of Record. Paddle handles all tax/VAT calculations and compliance automatically. The seller receives net payouts and doesn't need to worry about tax filings in 100+ countries.

---

Related Docs

• Stripe Gateway — Detailed Stripe integration guide
• PayPal Gateway — Detailed PayPal integration guide
• Paddle Gateway — Detailed Paddle integration guide
• Payment Recovery Tools — Automatic retries, manual retry, sync from gateway, pending-cancel handling
• Auto-Renew and Manual Fallback — Customer toggle and manual payment flow
• Gateway Health Dashboard — Monitoring and webhook event log
• Cron Job Setup — Required for automatic retries and scheduled jobs to fire reliably

---

FAQ

Can I use multiple gateways at the same time? Yes. All three gateways can be enabled simultaneously. Customers choose their preferred gateway at checkout. Each subscription is tied to the gateway used for its initial purchase.

What happens if a webhook fails to arrive? The renewal engine has a fallback: if no webhook confirms payment within the grace period, the subscription follows the standard overdue flow (Active → On-Hold → Cancelled). For ArraySubs-managed gateways like Stripe, the system also has retry logic.

Can I switch a subscription from one gateway to another? Not directly. You would need to detach the current gateway (converting to manual payments) and then have the customer pay a renewal invoice with the new gateway. The new gateway's payment method is then stored for future renewals.

Do I need to configure webhooks manually? For Stripe, normally no. Configure and connect the official WooCommerce Stripe Gateway first; ArraySubsPro uses that official connection to create or repair its secondary ArraySubs Stripe webhook automatically for the active test/live mode. PayPal and Paddle still require their webhook details to be configured in their provider dashboards. Paddle also requires a Default Payment Link in Paddle Dashboard -> Checkout -> Checkout settings before transaction checkout can open.

What if a customer's card expires? For Stripe: the card network may automatically update the card details (card auto-update). If not, Stripe sends a card_expiring webhook and ArraySubs notifies the customer. For PayPal/Paddle: account-level payment method management is handled by the gateway's own customer portal.
